Tools & ACL Security

AI In A Box supports function calling (tools) that allow the LLM to retrieve data and perform actions in ServiceNow. When enabled, Tools ACL Security ensures these tool calls respect the requesting user's access controls.

What Are Tools?

Tools are functions that the LLM can call during a conversation. For example:

• get_incident - Look up incident details by number or caller
• search_knowledge - Search knowledge base articles
• search_catalog - Search service catalog items

When a user asks "What laptop options do we have in the service catalog?", the LLM can call the search_catalog tool to fetch real data instead of making up an answer.

Why ACL Security Matters

Without ACL security, tools run as the integration user (e.g., aiab_service), which typically has elevated permissions. This means:

• Users could access data they shouldn't see
• Field-level ACLs would be bypassed
• Sensitive information could be exposed

With ACL security enabled, tool calls execute as the requesting user, ensuring all ServiceNow access controls are enforced through GlideRecordSecure.

How It Works

Tool Selection Behavior

AI In A Box intelligently controls which tools are available to the LLM:

• No tools specified on the inference: All active tools from the u_ai_tool table are sent to the LLM as possibilities
• Tools specified on the inference: Only the specific tools selected for that inference are sent to the LLM

This allows you to create focused experiences. For example, a "Service Catalog Assistant" inference might only include the search_catalog and create_request tools, while a general-purpose assistant might include all available tools.

Setup Requirements

To enable Tools ACL Security, you need two components:

1. Service Account with Admin Role

Create a dedicated service account that will authenticate callbacks:

1. Go to User Administration > Users
2. Create a new user (e.g., aiab_service)
3. Set a strong password
4. Grant the admin role

2. Callback Auth Property

Set the system property that stores the service account credentials:

ai_in_a_box.config.server.callback.auth = aiab_service:your-password

The AI In A Box server uses these credentials for Basic Authentication when calling back to ServiceNow to execute tools. ServiceNow's REST API authentication validates these credentials before any tool execution occurs.

Enable Tool Calling

Once the service account is configured, enable the tool calling feature:

1. Navigate to the AI In A Box Settings page in Service Portal
2. Find the Tool Calling feature box
3. Click Configure to open the setup wizard
4. Follow the 3-step wizard:
   • Step 1: Create Service Account & Set Auth Property
   • Step 2: Grant Admin Role
   • Step 3: Test Connection

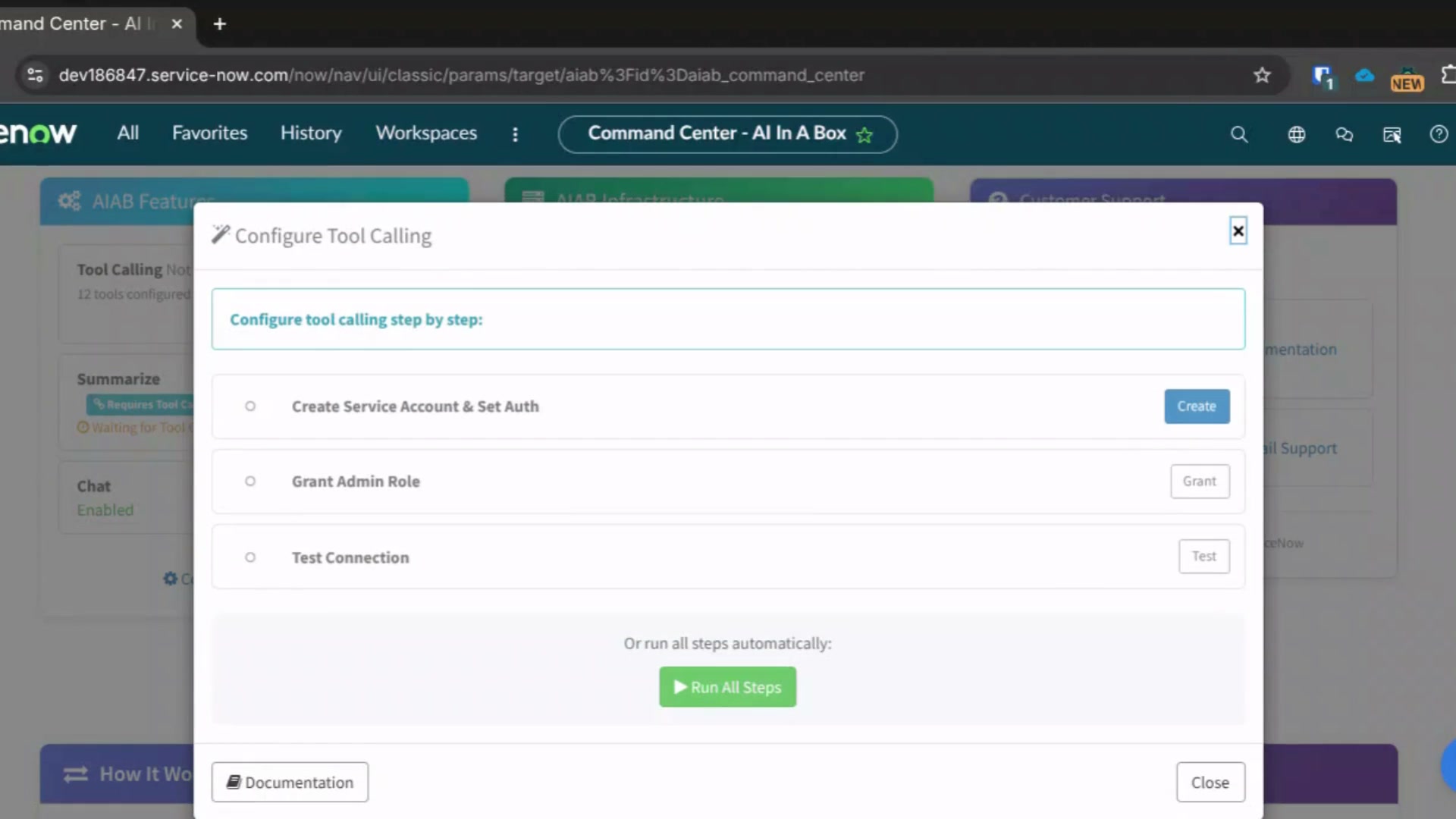

Video Walkthrough

Watch this step-by-step video demonstrating how to set up Tool Calling:

Click to play video (56 seconds)

Writing ACL-Safe Tool Scripts

When creating tools, follow these best practices to ensure ACLs are respected:

Use GlideRecordSecure

Always use GlideRecordSecure instead of GlideRecord:

(function(args, userId) {
    // GOOD: Uses GlideRecordSecure which respects ACLs
    var gr = new GlideRecordSecure('sc_cat_item');
    if (gr.get('sys_id', args.item_id)) {
        return {
            name: gr.getValue('name'),
            short_description: gr.getValue('short_description'),
            price: gr.getDisplayValue('price')
        };
    }
    return { error: 'Catalog item not found' };
})(args, userId);

Check Field-Level Access

For sensitive fields, explicitly check read access:

(function(args, userId) {
    var gr = new GlideRecordSecure('incident');
    if (gr.get('number', args.number)) {
        var result = {
            number: gr.getValue('number'),
            short_description: gr.getValue('short_description')
        };

        // Only include caller_id if user can read it
        if (gr.caller_id.canRead()) {
            result.caller_id = gr.getDisplayValue('caller_id');
        }

        return result;
    }
    return { error: 'Incident not found' };
})(args, userId);

Avoid ACL Bypasses

Never use:

• gr.setWorkflow(false) to bypass business rules
• GlideRecord directly (use GlideRecordSecure for ACL enforcement)

Troubleshooting

"Not Configured" Status

If the Tool Calling feature shows "Not Configured":

• Click the Configure button in the Tool Calling row
• Complete all 3 steps in the setup wizard
• The status will change to "Enabled" once the service account and auth property are configured

Tool Returns 401 Unauthorized

• Check ai_in_a_box.config.server.callback.auth contains valid credentials
• Verify the service account is active and not locked out
• Confirm the password is correct (format: username:password)
• Ensure the service account has the admin role

Tool Returns No Data (But Should)

• The user may not have access to the record (ACL working correctly!)
• Check the user's roles and group memberships
• Review the table and field-level ACLs
• Verify the tool script uses GlideRecordSecure

Connection Test Fails

If Step 3 (Test Connection) in the setup wizard fails:

• Verify the service account password is correct
• Check that the auth property format is username:password
• Try using the Force button on Step 1 to reset the password
• Check ServiceNow system logs for authentication errors

Example: search_catalog Tool

Here's a complete example of the search_catalog tool that searches service catalog items:

Parameters

{
  "type": "object",
  "properties": {
    "query": {
      "type": "string",
      "description": "Search text to find in catalog item name or description"
    },
    "category": {
      "type": "string",
      "description": "Catalog category name to filter by"
    },
    "limit": {
      "type": "integer",
      "description": "Max items to return (default 5, max 10)"
    },
    "portal_suffix": {
      "type": "string",
      "description": "The portal suffix e.g. sp of service-now.com/sp the user is in and blank for core ui"
    }
  },
  "required": []
}

Script

(function(args, userId) {
    // Use GlideRecordSecure to respect ACLs of the requesting user
    var catalogItemGR = new GlideRecordSecure("sc_cat_item");
    catalogItemGR.addQuery("active", true);

    if (args.query) {
        var query = "nameCONTAINS" + args.query;
        query += "^ORshort_descriptionCONTAINS" + args.query;
        query += "^ORdescriptionCONTAINS" + args.query;
        catalogItemGR.addEncodedQuery(query);
    }

    if (args.category) {
        var catGR = new GlideRecord("sc_category");
        catGR.addQuery("title", "CONTAINS", args.category);
        catGR.setLimit(1);
        catGR.query();
        if (catGR.next()) {
            catalogItemGR.addQuery("category", catGR.getUniqueValue());
        }
    }

    catalogItemGR.setLimit(Math.min(args.limit || 5, 10));
    catalogItemGR.query();

    var items = [];
    while (catalogItemGR.next()) {
        var link = false;
        if (args.portal_suffix) {
            link = '/' + args.portal_suffix + '?id=sc_cat_item&sys_id=' + catalogItemGR.getValue('sys_id');
        } else {
            link = '/now/nav/ui/classic/params/target/com.glideapp.servicecatalog_cat_item_view.do?v=1&sysparm_id=' + catalogItemGR.getValue('sys_id');
        }

        items.push({
            name: "" + catalogItemGR.name,
            short_description: "" + catalogItemGR.short_description,
            category: catalogItemGR.getDisplayValue("category"),
            price: "" + catalogItemGR.price,
            link: link
        });
    }

    if (items.length === 0) {
        return { found: false, message: "No catalog items found" };
    }

    return { found: true, count: items.length, items: items };
})(args, userId);

Security Considerations

Service Account Security

The service account has admin role, but this is mitigated by:

• Tool scripts use GlideRecordSecure which enforces the requesting user's ACLs
• Only data the user can access is returned
• All tool executions are logged in the u_ai_inference table
• Credential storage is encrypted in ServiceNow properties

Best Practices

• Use a dedicated service account (not a real person's account)
• Set a strong, unique password
• Rotate the password periodically
• Monitor the u_ai_inference table for unusual activity
• Review tool scripts for ACL compliance before deployment

Audit Trail

All tool executions are logged in the u_ai_inference table, including:

• The requesting user (u_requested_by)
• Tools called and their arguments (u_tool_calls)
• Results returned to the LLM
